2021/9/11 15:25:38作者:佚名来源:网络
今天我们来讲解一个通过FLASH AS3来制作特酷的遮罩动画效果的教程,先看一下最终效果吧:
这里以FLASH CS4来讲解,具体制作步骤如下:
步骤一、打开FLASH CS4,新建一个FLASH文档,选择AS3,然后按Ctrl+J进行文档属性设置,把文档的高度、宽度分别设置为550×314(这个大小与背景图片大小相同),如图:
步骤二、导入作为背景图片,选中背景图片,按下【F8】,转为【影片剪辑】,名称填写【背景图】,这个名称你可以自己任意填写名称,点【确定】,如图所示:

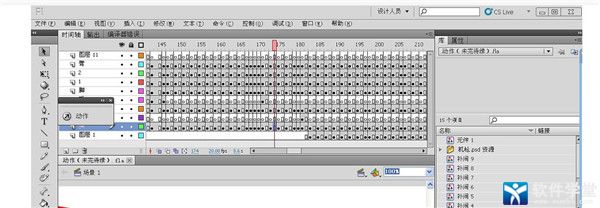

接着对这个有背景图的图层进行锁定,如图:
步骤三、新建一个图层,取个名称遮罩层,然后椭圆工具画一个禁止笔触为50*50的圆,填充黑色(其实这里可以填充任何一种颜色),然后按F8,把这个圆转为影片剪辑,名称设为mask,如图所示:
步骤四、删除舞台中的这个圆,把该图层改名为AS。
步骤五、新建ActionScript文件,编写一个外部的MyMask.as文件。在编译器中输入代码如下:
package { import flash.display.MovieClip; public class MyMask extends MovieClip { //Mask's x and y speed public var speedX:Number; public var speedY:Number; //Set the given scale for this mask, when we create a new //mask object public function MyMask(scale:Number) { this.scaleX = scale; this.scaleY = scale; } } }
步骤六、转到flash中的as层,输入如下as代码:
//We use an array to hold all our masks. //(Except the mask that follows our cursor) var masks:Array = new Array(); //We add all of the masks to a container var maskContainer:Sprite = new Sprite(); //Set the maskContainer to be the image's mask backgroundImage.mask=maskContainer; //Add the container on the stage addChild(maskContainer); //Create the mask which follows cursor movement (master mask) var masterMask:MyMask=new MyMask(1); //Set the master masks's coordinates to match cursor's coordinates masterMask.x=mouseX; masterMask.y=mouseY; //Add the master mask to a container maskContainer.addChild(masterMask); //Cache the image and container as bitmap, so we //can animate the alpha of the masks maskContainer.cacheAsBitmap=true; backgroundImage.cacheAsBitmap=true; //Create a timer that is called every 0.2 seconds var timer:Timer=new Timer(200,0); timer.addEventListener(TimerEvent.TIMER, timerEvent); timer.start(); //This function is called every 0.2 seconds. //We create a new mask in this function. function timerEvent(e:TimerEvent):void { //Calculate a random scale for the new mask (0 to 1.5) var scale:Number=Math.random()*1.5 + 0.5; //Create a new mask with random scale var newMask:MyMask=new MyMask(scale); //Set the position for the new mask newMask.x=mouseX; newMask.y=mouseY; //Assign a random x and y speed for the mask newMask.speedX=Math.random()*20-10; newMask.speedY=Math.random()*20-10; //Add the mask to the container maskContainer.addChild(newMask); //Add the mask to the array masks.push(newMask); } //We need ENTER_FRAME to animate the masks addEventListener(Event.ENTER_FRAME, enterFrameHandler); //This function is called in each frame function enterFrameHandler(e:Event):void { //Loop through the mask array for (var i:uint = 0; i < masks.length; i++) { //Save a mask to a local variable var myMask:MyMask = (MyMask)(masks[i]); //Update the x and y position myMask.x+=myMask.speedX; myMask.y+=myMask.speedY; //Increase the scale myMask.scaleX+=0.1; myMask.scaleY+=0.1; //Reduce the alpha myMask.alpha-=0.01; //If the alpha is below 0, remove the mask //from the container and from the array if (myMask.alpha<0) { masks.splice(i,1); maskContainer.removeChild(myMask); } } //Update the master mask position masterMask.x=mouseX; masterMask.y=mouseY; }
至此,整个用AS3制作的特酷的遮罩动画效果动画就制作完成了,你可以按Ctrl+Enter进行测试。
感兴趣的朋友可以直接下载flash源码研究一下。
